The ECON Vibration Transducer Intelligent Calibration System is an easy-to-use and intelligent calibration system with high precision, excellent stability, and full traceability.
The system is capable of obtaining key parameters of vibration and shock transducers, such as sensitivity, amplitude linearity, and frequency response, enabling intelligent calibration of vibration and shock transducers.
Features and Advantages
1 High Precision and Traceability
- Compliant with ISO standards
- System frequency response correction calibration
- Compensation for frequency response errors of reference transducers
- Traceable to upper-level reference standards
- Reduced calibration uncertainty and high-precision calibration results
2 Compatibility
- Compatible with a wide range of vibration transducers, including:
- Charge type
- IEPE
- Piezoresistive
- Variable capacitance
- Servo type
- Voltage output type
- Electrodynamic (velocity coil) transducers
3 Intelligent and Efficient
- Automatic calibration with closed-loop control
- Intelligent parameter configuration
- Automatic calculation of calibration results
- One-click generation of calibration reports
- High-precision and efficient calibration process
4 Flexible Configuration
Full frequency calibration range from 0.002 Hz to 20 kHz
High shock excitation levels up to 100 km/s²
Multiple excitation methods:
- Random excitation
- Sine excitation
- Swept-sine excitation
System Description
The ECON Vibration Transducer Calibration System consists of a programmable calibrator, a standard exciter, a reference sensor, and a conditioning amplifier. The programmable calibrator provides the system's input signal and signal generator output. IEPE sensors or voltage-output transducers can be directly connected to the programmable calibrator. The conditioning amplifier provides signal conditioning and pre-amplification for charge-type sensors. For piezoresistive and other bridge type transducers, MI-1501 Bridge Amplifier is used for powering and conditioning. MI-2104 Sensor Adapter can also be used for powering variable capacitance and other transducers and can be configured with different excitation voltages.

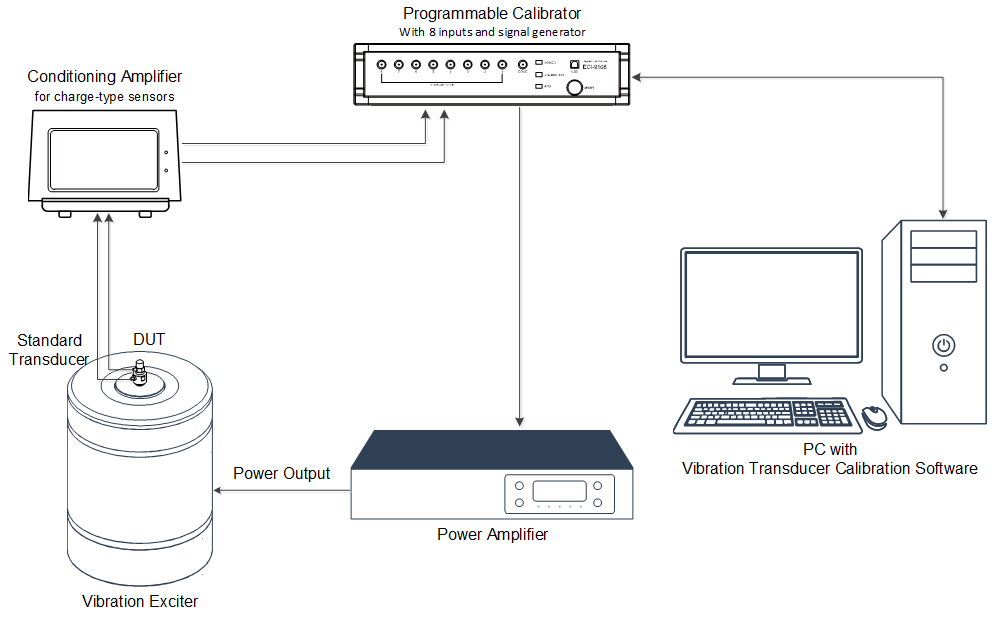

The programmable calibrator generates a standard signal source, which is amplified by a power amplifier to drive the standard vibration shaker and produce reference vibrations. The signal fed back from the shaker tabletop serves as the closed-loop control signal, while the signals measured by the reference sensor (or laser vibrometer) and the sensor under test act as vibration comparison signals and are transmitted to the programmable calibrator. The calibration software automatically performs calculations, plots curves, and displays the results on the computer screen.
Standards Compliance
Modules
- Primary calibration of vibration transducers according to ISO 16063-11:1999, Method 3 (GB/T 20485.11)
- Comparison calibration of vibration transducers according to ISO 16063-21:2005 (GB/T 20485.21)
- Calibration of vibration calibrators according to ISO 16063-44:2016
- Comparison calibration of shock transducers according to ISO 16063-22:2005 (GB/T 20485.22)
- Calibration of vibration meters
- Calibration of vibration generator systems
Technical Specifications
Note: The following specifications are typical. Actual performance depends on the exciter, transducers, and system configuration used.
Input
- Voltage: ≤ 10 V PEAK
- Charge: ≤ 10⁶ pC PEAK
Frequency Range
Calibration frequency range: 0.1 Hz to 20 kHz
Maximum Payload
| Model | Frequency Range | Maximum Payload |
|---|---|---|
| ECS-1815 | 10 Hz – 5,000 Hz | ≤ 2 kg |
| ECS-1816 | 5 Hz – 20,000 Hz | ≤ 0.5 kg |
| ECS-1812 | 0.1 Hz – 200 Hz | ≤ 10 kg |
| ECS-1813 | 0.002 Hz – 200 Hz | ≤ 10 kg |
Recommended Systems

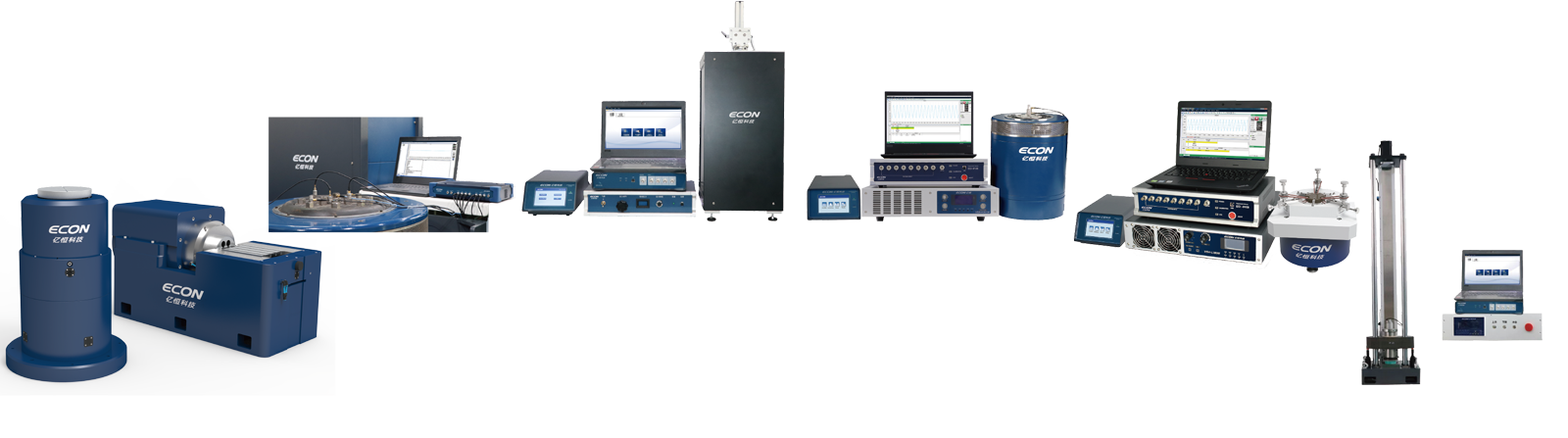

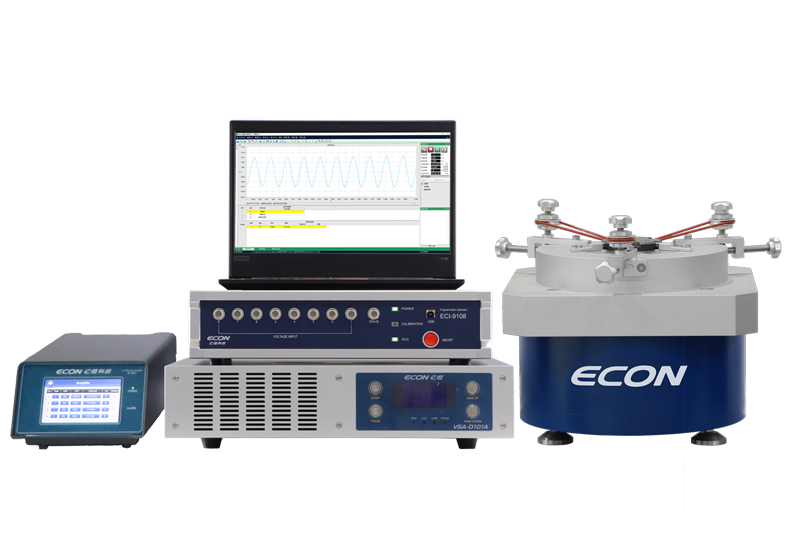

1 ECS-1815 Medium-Frequency Vibration Transducer Calibration System
- Comparison calibration according to ISO 16063-21:2005
- Calibration of vibration transducers and vibration meters

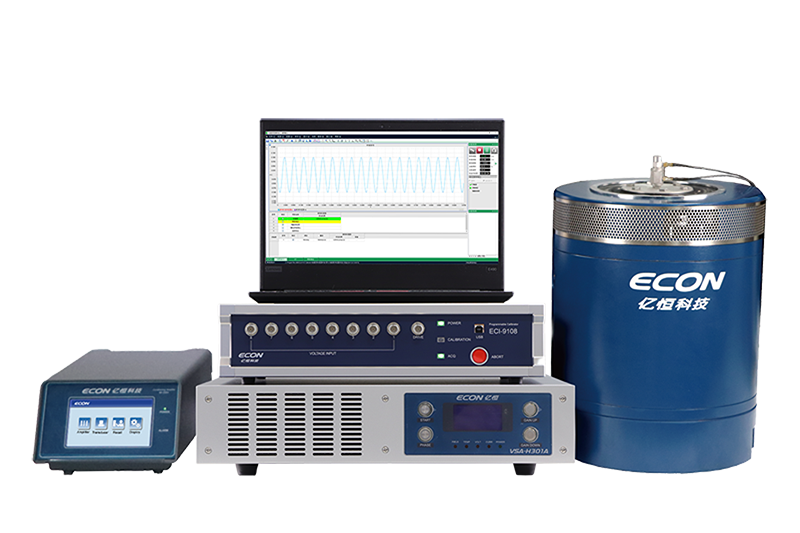

- Frequency range (VE-4125): 10 Hz to 5,000 Hz
2 ECS-1816 High-Frequency Vibration Transducer Calibration System
- Comparison calibration according to ISO 16063-21:2005
- Calibration of vibration meters
- Frequency range (VE-4210): 5 Hz to 20,000 Hz
3 ECS-1812 Low-Frequency Vibration Transducer Calibration System
- Comparison calibration according to ISO 16063-21:2005
- Calibration of vibration meters
- Frequency range: 0.1 Hz to 200 Hz
4 ECS-1813 Low-Frequency Vibration Transducer Calibration System
- Primary calibration according to ISO 16063-11:1999, Method 3
- Comparison calibration according to ISO 16063-21:2005
- Calibration of vibration meters
- Frequency range: 0.002 Hz to 200 Hz
5 ECS-1825 Shock Transducer Calibration System
- Comparison calibration according to ISO 16063-22:2005
- Calibration and linearity check
- Shock level range: 10 g to 1,000 gᵖᵏ
6 ECS-1828 Shock Transducer Calibration System
- Comparison calibration according to ISO 16063-22:2005
- Calibration and linearity check
- Shock level range: 20 g to 10,000 gᵖᵏ
- Pneumatically actuated exciter providing controlled and consistent impacts
7 VVT-2658 Vibration Generator / Shaker Calibration System
- Calibration of vibration generator systems
